Wagner Intercooler - Megane 4 RS

Megane IV RS Wagner Intercooler

The WAGNER TUNING high-performance intercooler has got a new competition core (Tube Fin) with the dimensions 315 mm x 227 [142] mm x 165 [150] mm [stepped] / 12,4 Inch x 8,9 [5,6] Inch x 6,4 [5,9] Inch [stepped], which was developed especially for the requirements of the Renault Megane 4RS. This high-performance core offers an 6 % larger frontal surface and 47 % more core volume compared to the stock intercooler.

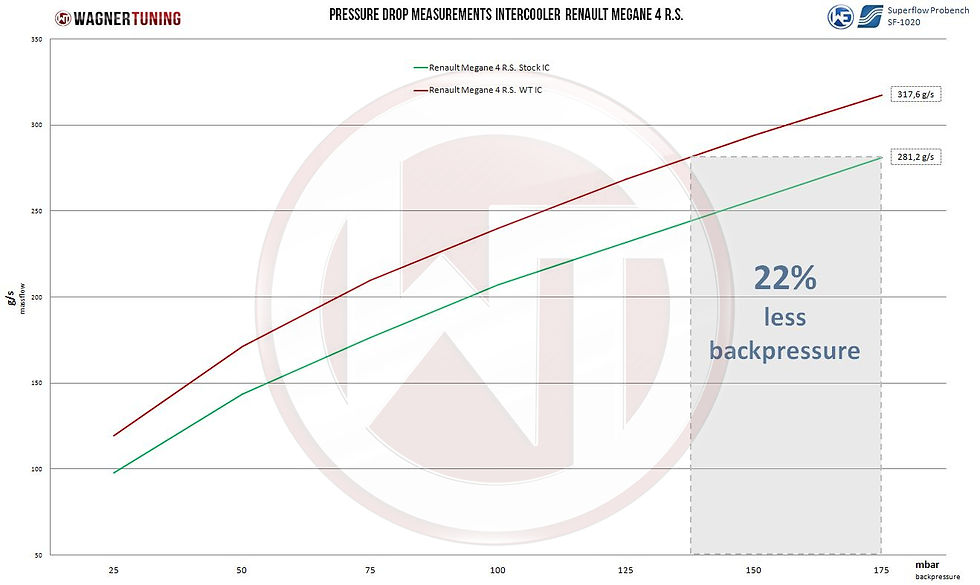

The aluminium cast endtanks were designed in CAD and optimised in CFD simulations (for an ideal internal airflow). The result is a excellent cooling property with a minimal back pressure. The newly developed competition high-performance core is very light and provides the adjoining components (for example the watercooler) enough air flow. That`s why this kit is perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!

An anti-corrosion powder coating with perfect heat-conducting properties protects the WAGNER TUNING intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. The installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.

Inlet diameter: Ø65 mm/2,56 Inch ; Outlet diameter Ø67,2 mm/2,64 Inch (stock click-connection)

Dimensions stock intercooler:
290 mm x 233 mm x 115 mm / 11,4 Inch x 9,2 Inch x 4,5 Inch
V = 7,77 L / 474 Inch³
A = 675 cm² / 104,6 Inch²

Dimensions WAGNER TUNING intercooler:
315 mm x 227 [142] mm x 165 [150] mm [stepped] / 12,4 Inch x 8,9 [5,6] Inch x 6,4 [5,9] Inch [stepped]
V = 11,4 L / 696 Inch³
A = 715 cm²/ 110,8 Inch²

kit comes with:
1 intercooler
1 silicone hose (black)
1 mounting material
1 installation instruction
